Apple CarPlay and Android Auto Wireless Adapter Setup for BMW CIC Systems

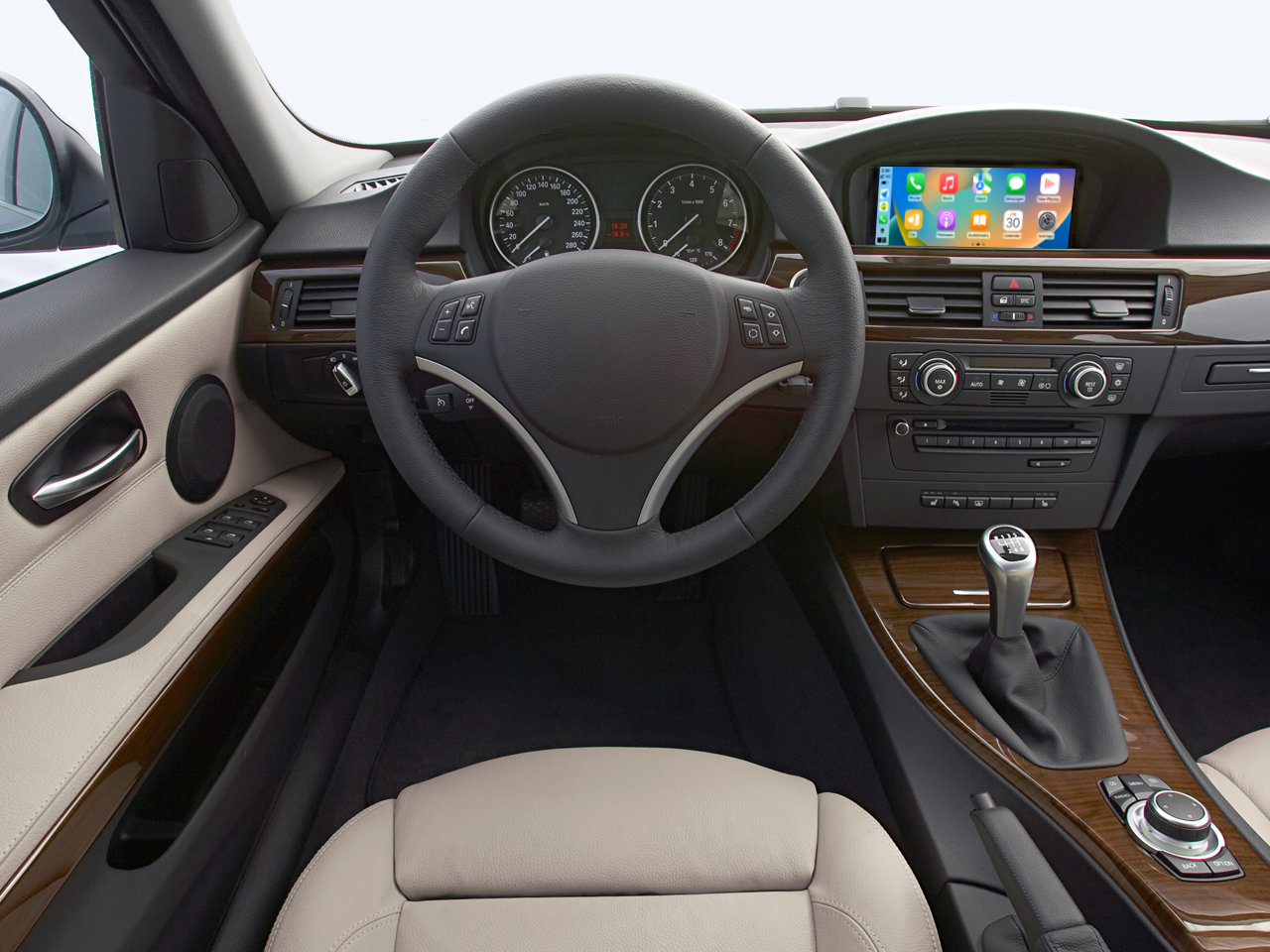

Imagine enhancing your BMW's intelligence and connectivity with the BMW CIC Apple CarPlay and Android Auto Installation. This setup provides effortless navigation, hands-free calling, and access to your favorite music. The best part? The plug-and-play installation is straightforward and maintains all of your car's original features.

Key Takeaways

• Collect needed items like LVDS cables, a Wi-Fi antenna, and a microphone to easily install Apple CarPlay and Android Auto in your BMW.

• Use a step-by-step guide to link the adapter to your BMW's CIC system. Make sure all cables are tightly connected for the best results.

• Check everything carefully after setup to ensure features like sound, wireless connection, and the reverse camera work properly.

Required Accessories and Tools for BMW CIC Apple CarPlay and Android Auto Installation

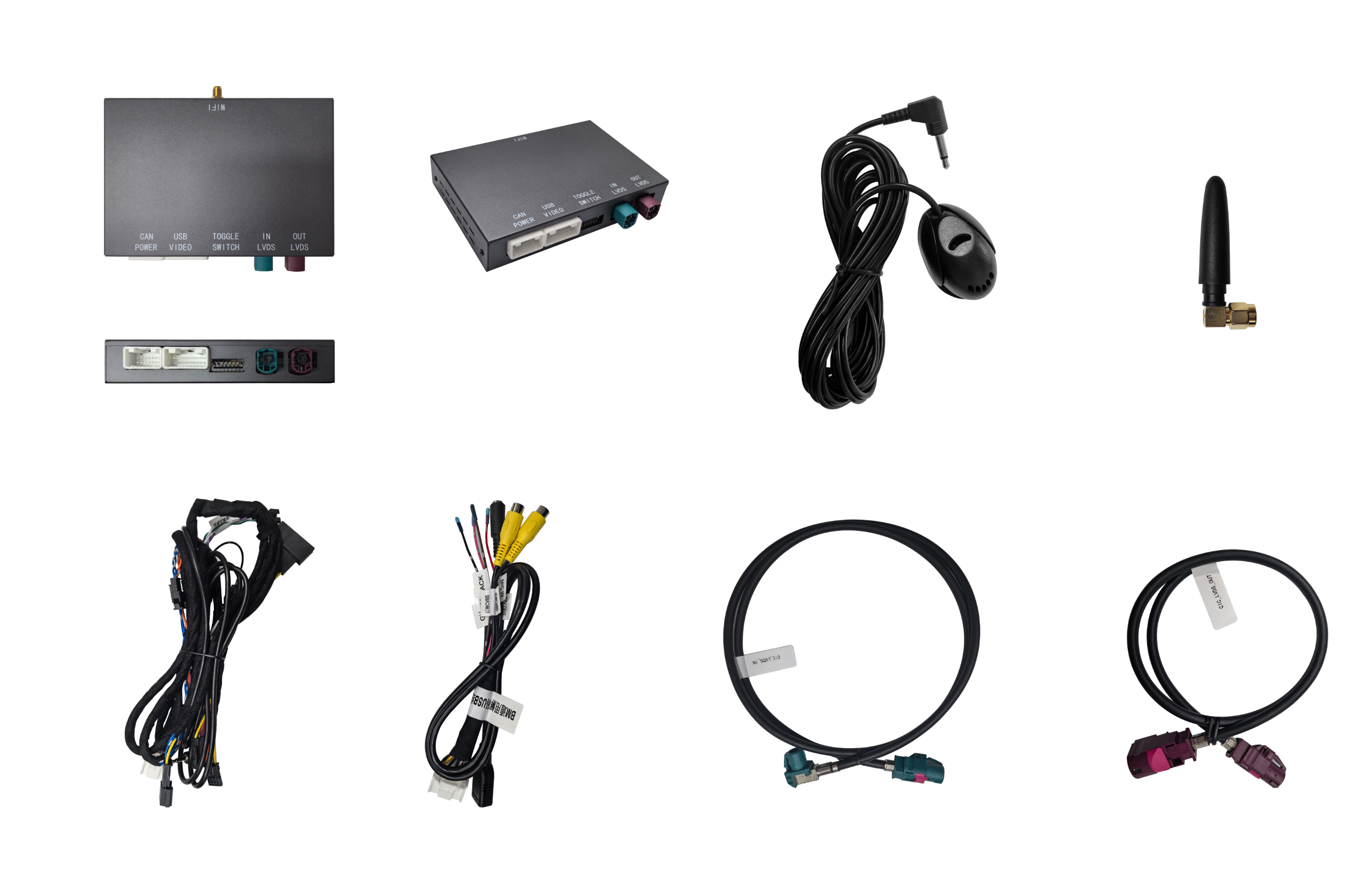

To set up Apple CarPlay or Android Auto in your BMW, you’ll need some key items. These tools make the process easy and help unlock all features. Here’s what you’ll need:

LVDS cables

LVDS cables link your BMW’s screen to the CarPlay system. You’ll need one LVDS-IN and one LVDS-OUT cable. These cables send video signals for a clear display.

• Pro Tip: Check if your LVDS cables work with your BMW model.

Wi-Fi antenna

The Wi-Fi antenna lets your phone connect wirelessly. This means no cables are needed for CarPlay or Android Auto.

AV/USB cable

This cable adds features like a backup camera and video input. It also has a USB port for charging or playing media.

Can Cable

The Can Cable powers the CarPlay box by connecting to your car. It’s easy to install and doesn’t need special tools.

iDrive Cable

The iDrive Cable links your car’s controls to the CarPlay system. It comes in 4-pin and 10-pin versions, so pick the right one.

Aftermarket microphone

If your car lacks a microphone, you’ll need an aftermarket one. This helps with clear calls and voice commands.

MIC adapter cable

The MIC adapter cable connects your car’s microphone to the CarPlay system. It ensures everything works without extra wiring.

Tip: Using the correct tools makes installation easier and improves system performance.

Here’s a quick summary of what these tools offer:

With these tools, you can upgrade your BMW’s system into a modern tech hub.

Step-by-Step Installation Guide

Getting the car ready and tools together

Park your BMW in a safe, bright spot. Gather all needed tools like LVDS cables, Wi-Fi antenna, and microphone. Keep a screwdriver set nearby to remove panels. Disconnect the car battery to prevent electrical problems during setup.

Tip: Take a photo of your car’s wiring before starting. This helps you reconnect everything later.

Hooking up the adapter to the CIC system

It’s time to connect the adapter to your BMW’s CIC system. Follow these steps:

1. Move the optical cable to the new harness for proper function.

2. Plug in the LVDS-IN and LVDS-OUT cables for the display.

3. Use the right CAN connector (Low or High) for your car model.

4. Attach the audio cable to the AUX-IN port for sound.

5. Connect the microphone as per OEM guidelines.

6. Use the 4-pin or 10-pin iDrive cable based on your system.

7. Adjust toggle switches for your screen size and microphone type.

Setting up Apple CarPlay and Android Auto

After connecting the hardware, set up the system for Apple CarPlay or Android Auto.

1. Turn on Bluetooth, Wi-Fi, and Siri on your iPhone.

2. On the iDrive screen, go to COM > Mobile Devices > Settings. Enable Bluetooth, Wi-Fi, and Apple CarPlay.

3. Choose New Device > Phone calls and audio.

4. On your iPhone, go to Settings > General > CarPlay and pick your BMW PIN.

5. Accept pairing requests on both your iPhone and iDrive screen.

6. Select the option to connect to Apple CarPlay on the iDrive screen.

Note: For Android Auto, follow similar steps to enable Bluetooth and Wi-Fi on your Android phone.

Testing the setup to check everything works

Once installed, test the system to make sure it works.

• See if the CarPlay interface shows on the display.

• Test wireless pairing with your phone.

• Play music or make a call to check sound quality.

• Try voice commands to test the microphone.

• If you added a reverse camera, shift to reverse to check the video.

Pro Tip: If something doesn’t work, check the connections and settings again. Loose cables or wrong settings cause most issues.

Compatibility Check for BMW CIC Systems

Checking compatibility with your VIN

Want to know if your BMW works with the BMW CIC CarPlay system? The simplest way is by using your car's VIN (Vehicle Identification Number). This special code shows your car's details and if it supports upgrades. Websites like BimmerTech have tools where you can enter your VIN to see if your BMW works with wireless adapters for Apple CarPlay or Android Auto.

After confirming compatibility, you can move forward easily. If you're unsure, check if your iPhone connects properly to the iDrive system. Also, ensure the Wi-Fi antenna is set up correctly. If problems continue, restart both your iPhone and the iDrive system.

Tip: If CarPlay still doesn’t work, try another iPhone or check your CarPlay subscription in the ConnectedDrive store.

BMW models and CIC systems that work

Not all BMWs have built-in CarPlay, especially older ones with CIC systems. But the BMW CIC CarPlay retrofit lets older cars enjoy modern features. Here are some models that work:

These cars, made between 2008 and 2013, can be upgraded with the retrofit kit. The system keeps your car’s original features while adding wireless CarPlay and Android Auto.

Choosing the right connector (4-pin or 10-pin)

To set up your BMW CIC CarPlay system, you need the correct connector. BMW CIC systems use either a 4-pin or 10-pin iDrive cable. The type depends on your car’s model and year.

Check your car’s iDrive system to find the right connector. If you’re not sure, look at the guide in your retrofit kit. Using the wrong connector can cause problems, so this step is important.

Note: The retrofit kit comes with both 4-pin and 10-pin cables, so you’ll have everything needed for an easy setup.

By following these steps, you can prepare your BMW for the upgrade. Whether you drive a 5 Series or an M3, the BMW CIC CarPlay system makes your car smarter and more modern.

Troubleshooting Common Issues During Installation

Sometimes, problems happen even with the right tools. Don’t stress! Follow these tips to fix common issues and get everything working.

Fixing sound issues

No sound from the CarPlay module? Check the fiber cable connection first. It must be securely attached to the new harness. Then, switch your car’s system to AUX mode and adjust the volume. Still silent? Plug the AUX cable into the armrest box.

If the microphone has noise, move it to a quieter spot in the car. This often solves the problem. If apps like Google Maps sound unclear, check the AUX cable connection again. A tight connection gives clear audio for calls and directions.

Tip: Test the sound after every change to ensure it’s fixed.

Solving wireless connection problems

Wireless Apple CarPlay is great, but it can have issues. First, turn on Wi-Fi and Bluetooth on your phone. If your car’s Bluetooth has old connections, delete them to avoid conflicts.

Keep the Wi-Fi antenna away from metal to stop interference. Also, make sure Siri is fully allowed on your iPhone. If it still won’t connect, reset the connection records on both your phone and car.

Pro Tip: Restarting your phone and CarPlay module often fixes stubborn connection problems.

Setting up the reverse camera

A reverse camera helps with safer parking. To install it, connect the camera to the CVBS OUT port marked "Reverse camera." Use the yellow 12V cable to power it. Then, go to your iDrive screen settings. Select Settings → Reverse → Reverse camera → Aftermarket to turn it on.

If the camera doesn’t work, check all connections again. Make sure cables are plugged in tightly and the power is steady. For more help, read the user manual in your kit.

Note: Test the reverse camera after setup to confirm it works.

By following these steps, you can fix most problems and enjoy your wireless Apple CarPlay system without trouble.

Making your BMW work with wireless CarPlay is simple. Use the right tools and follow clear steps for success. Not sure what to do? Ask an expert or check products for your car. Have questions? Share them in the comments, and we’ll assist you!

FAQ

How do I know if my BMW supports the retrofit kit?

Check your car’s VIN online or consult your user manual. Ensure your BMW has a compatible CIC system and iDrive version.

Can I still use my car’s original iDrive controls?

Yes! The retrofit kit integrates seamlessly with your iDrive system. You can control CarPlay and Android Auto using the same buttons and knobs.

What should I do if the screen doesn’t display CarPlay?

Double-check the LVDS cables and iDrive settings. Ensure the toggle switches match your screen size. Restart the system if needed.
