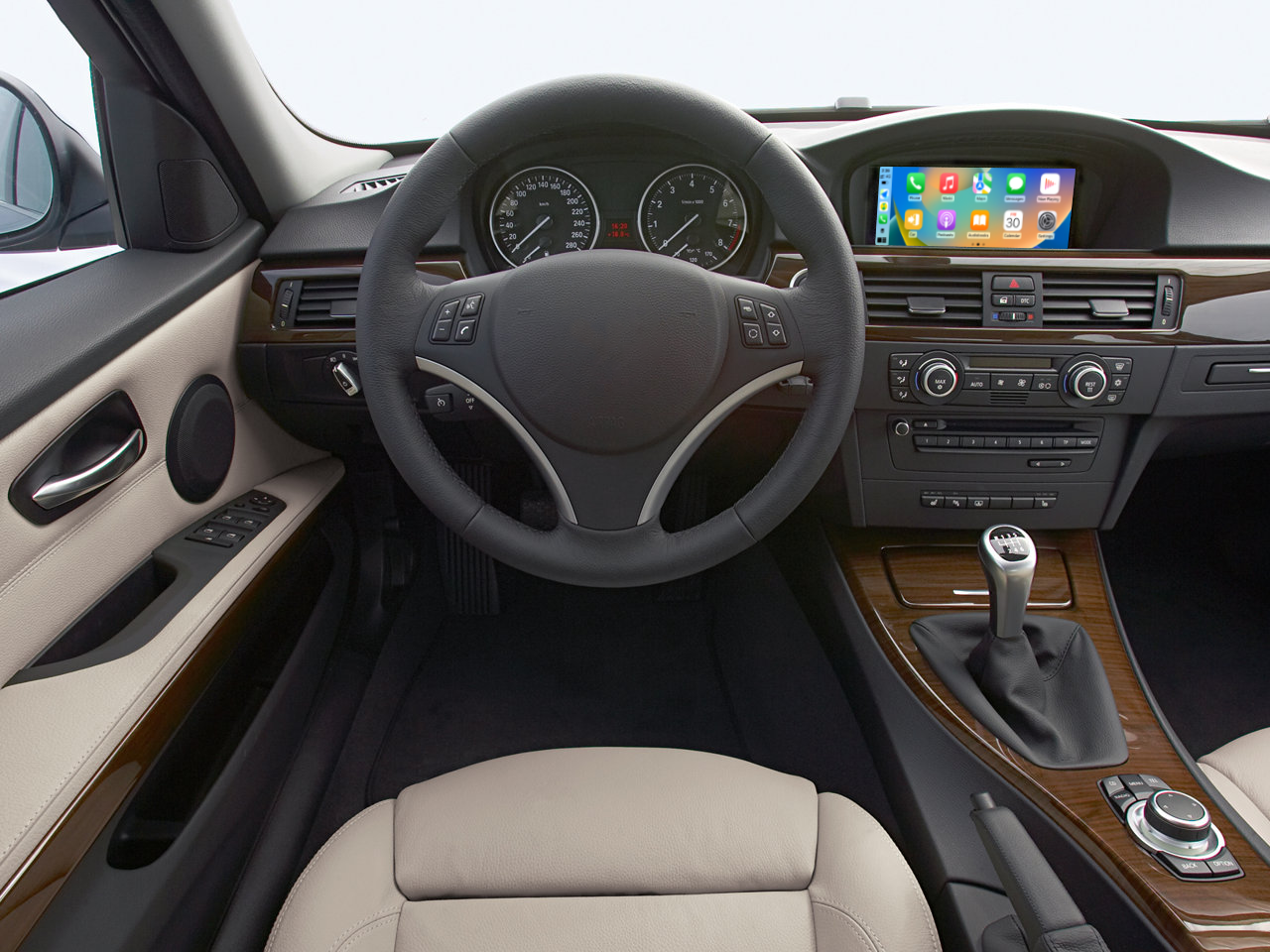

How to Install Apple CarPlay Adapter for Car with BMW CIC Systems
Upgrade your BMW's system with the BMW CIC Apple CarPlay and Android Auto Installation. CarPlay connects your iPhone to your car's screen, allowing you to easily use calls, texts, music, and maps. It is hands-free, enhancing your safety while driving. This guide will show you how to install it yourself, making your driving experience easier and more enjoyable.
Key Takeaways
Adding the Apple CarPlay adapter improves your BMW's features. It lets you use calls, texts, music, and maps hands-free.
Check if your BMW works with the adapter. Update your iPhone and iDrive system to the newest versions.
Follow the guide step by step. Connect the cables and change settings for easy setup and best performance.

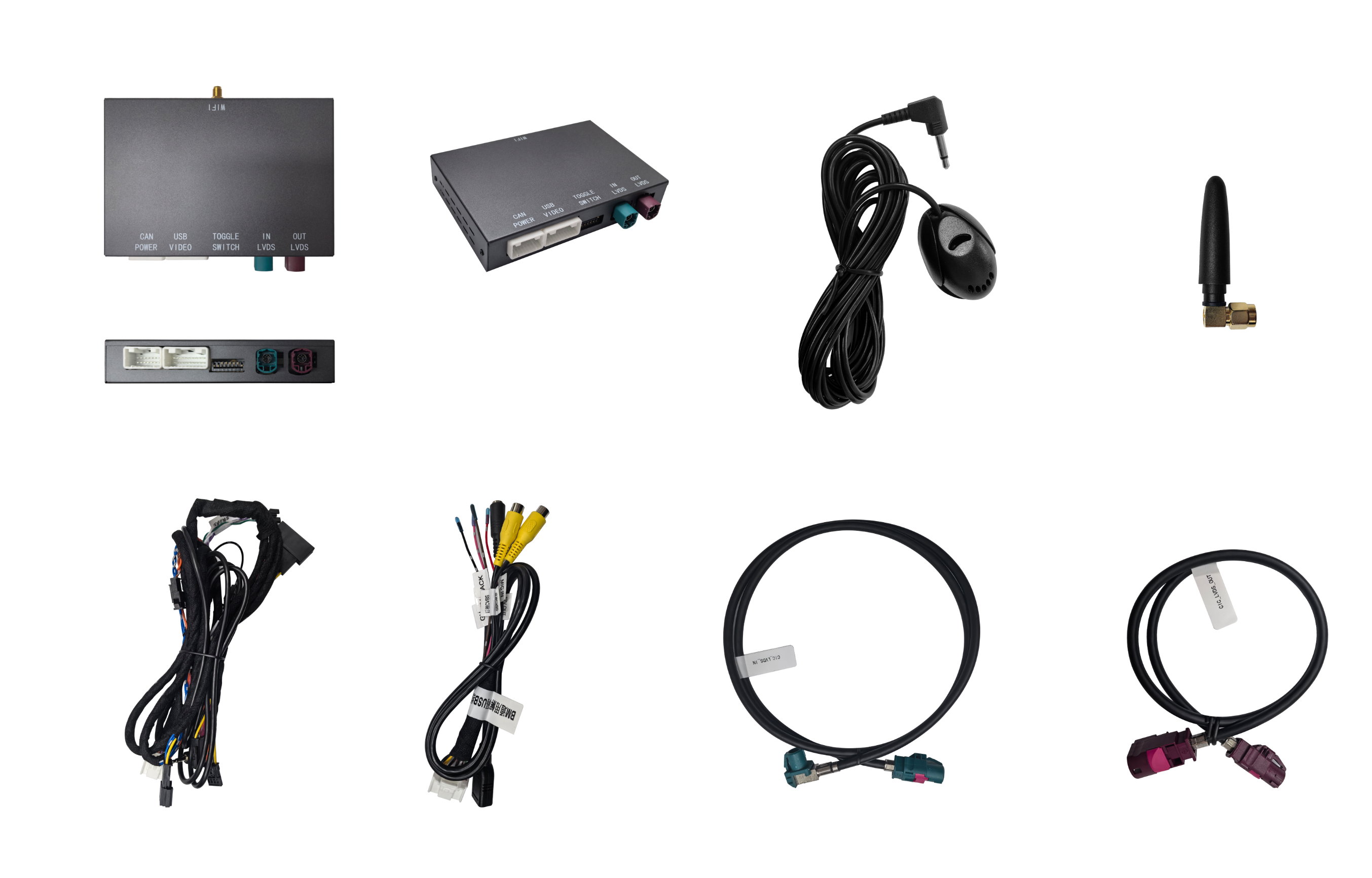

Required Accessories for BMW CIC Apple CarPlay and Android Auto Installation
LVDS Cables for Video Connection
LVDS cables are important for this installation. They send video between the CarPlay box and your car's screen. You need two cables: LVDS-IN and LVDS-OUT. These cables make sure the video works smoothly. This lets you use maps and media on your car's display.
Wi-Fi Antenna for Wireless Connectivity
A Wi-Fi antenna is needed for wireless CarPlay. It attaches to plastic parts in your car to avoid metal interference. This keeps the connection strong. You can use CarPlay or Android Auto without plugging in your phone.
AV/USB Cable for Power and Video Input
The AV/USB cable powers the CarPlay box and connects the backup camera. It gives clear video when you reverse. This cable also makes installation easy with plug and play features.
Can Cable and iDrive Cable for System Integration
The CAN cable links the CarPlay box to your car's system. The iDrive cable has 4-pin and 10-pin options, fitting different BMW models. Both cables are plug and play, making setup simple and smooth.
Microphone and MIC Adapter Cable for Audio Setup
You need a microphone and MIC adapter cable for sound. If your car doesn’t have a mic, you can add one. The MIC adapter works with the original mic for clear calls and voice commands. Follow the wiring steps to finish the setup.
Step-by-Step Installation Process
Getting Your BMW Ready for Installation
Before you begin, make sure your BMW is prepared. Check if your car supports Apple CarPlay. Update your iPhone and BMW iDrive system to the latest versions (iOS 9.3 or newer). Ensure your car has a Wi-Fi antenna for wireless use. These steps help make the installation smooth.
Hooking Up LVDS Cables and Changing CAN Settings
Connecting LVDS cables correctly is very important. Attach the LVDS-IN and LVDS-OUT cables to the CarPlay box and car screen. Wrong connections can cause no display. Adjust CAN settings based on your car model. Most BMW CIC systems use Low CAN, but some like X3 or X5 may need changes. Follow the guide for exact instructions.
Setting AUX IN and MIC Wires for CIC Systems
For sound, plug the AUX-IN cable into the armrest port. If your car has a built-in mic, connect A to C and place the mic tap cable between the mic connector and main wiring. Set pin 7 to "FF" and restart. If no built-in mic, connect A to C and B to D, then set pin 7 to "ON." This ensures clear calls and voice commands.
Adjusting Toggle Switch for Screen and Mic Settings
The toggle switch depends on your screen size. For a 6.5-inch screen, use default settings. For bigger screens like 8.8 or 12.2 inches, change the toggle switch. This makes CarPlay fit your screen. Follow the guide to set up the microphone too.
Testing and Switching Between CarPlay and BMW Modes
Once installed, test the system. Set the OEM system to AUX and adjust volume. If sound doesn’t work, plug an AUX cable into the armrest port. Turn on Bluetooth and Wi-Fi on your iPhone. Pair your phone with CarPlay by going to Settings > General > CarPlay on your iPhone and selecting your BMW. After pairing, you can switch between CarPlay and BMW mode. Wireless CarPlay lets you use features like screen mirroring without a USB cable.
Troubleshooting Common Issues
Fixing Sound Problems with AUX and Fiber Cable Setup
Sometimes, sound might not work during installation. Check the fiber cable is connected properly. Set your car's system to AUX mode and turn up the volume. If there’s still no sound, plug an AUX cable into the armrest port. This helps the audio work correctly for CarPlay. Always check all connections to avoid problems.
Solving Wireless Apple CarPlay Connection Problems
Wireless CarPlay might not connect if settings are wrong. Make sure Wi-Fi is on and Bluetooth is paired with your car. Remove the old Bluetooth connection and pair it again. Keep the Wi-Fi antenna away from metal to stop interference. Allow Siri permissions on your iPhone for voice commands. If it still doesn’t work, reset the connection on both your phone and car. These steps will help you use wireless CarPlay smoothly.
Setting Up Reverse Camera and Changing System Settings
To use a reverse camera, connect it to the CVBS OUT port. Give the camera 12V power to make it work. Go to system settings and turn on the reverse camera option. This setup helps you see clearly behind your car. Follow these steps to make sure the camera works well with CarPlay.
Tip: Use the table below to quickly fix common problems during your BMW CIC Apple CarPlay and Android Auto setup.
Problem | Steps to Fix |
|---|---|
1) Connect fiber cable properly. 2) Set AUX on car system and adjust volume. 3) Plug AUX cable into armrest if needed. | |
Wireless CarPlay won’t connect | 1) Turn on Wi-Fi and pair Bluetooth. 2) Remove old Bluetooth and reconnect. 3) Keep Wi-Fi antenna away from metal. 4) Allow Siri permissions. 5) Reset connections on phone and car. |
Reverse camera not working | 1) Connect camera to CVBS OUT. 2) Provide 12V power to camera. 3) Enable reverse camera in settings. |
By following these steps, you can fix common problems and enjoy all the features of your CarPlay system, like wireless use and phone mirroring.
Adding the Apple CarPlay adapter to your BMW CIC system improves driving. This guide makes installing BMW CIC Apple CarPlay and Android Auto easy. You’ll get wireless connection, phone mirroring, and smooth car system integration. CarPlay and Android Auto make your car smarter and more user-friendly.
FAQ
1. Can I install the Apple CarPlay adapter myself, or do I need professional help?
Yes, you can install it by following this guide. If you're unsure about wires or settings, ask a professional for help.
2. Does the adapter work with all BMW CIC systems?
The adapter works with most BMW CIC systems. Check your car's model and year to make sure it fits before buying.
3. How do I switch between CarPlay and the original BMW system?
Switch modes using the toggle switch or iDrive controller. Follow the guide for steps based on your screen size.
Tip: Test the system after setup to ensure smooth mode switching.
