Common BMW CIC CarPlay Installation Errors and How to Solve Them

Setting up a BMW CIC CarPlay installation can be challenging. You might encounter sound problems, wireless issues, or difficulties with the reverse camera. Don’t worry! With a reliable guide and some assistance, you can resolve these issues. Reviews frequently suggest selecting a trusted installer to simplify the process. If you’re facing difficulties, reach out to your installer for support!

Key Takeaways

• Make sure all cables are plugged in correctly. This prevents sound and screen problems. Check them again before starting the system.

• If wireless connection fails, attach the Wi-Fi antenna tightly. Place it on a plastic part of the car for better signal.

• Carefully follow the setup steps, especially for toggle switches. Right settings make the CarPlay system work well in your BMW.

Overview of BMW CIC CarPlay System

Key Features and Functionalities of BMW CIC CarPlay

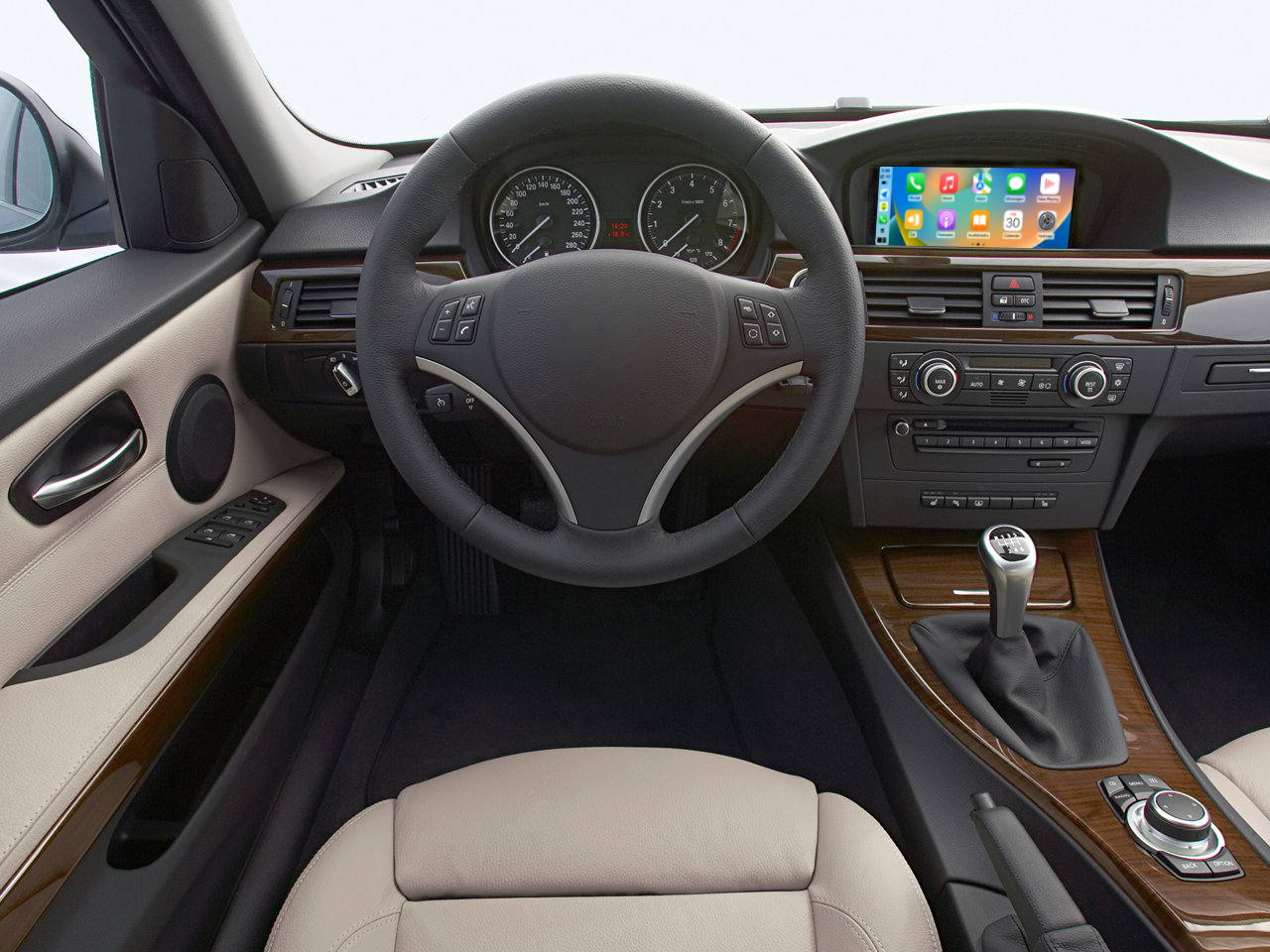

The BMW CIC CarPlay system adds smart tech to your car. It makes driving more fun and easier to manage. You can connect your iPhone wirelessly without using any cables. This lets you use apps like Google Maps or Spotify hands-free. You can stay focused on driving while enjoying these features. The system works well with the iDrive controller, making app navigation simple.

Here’s a quick summary of its standout features:

The system also has great sound quality with an 8-band equalizer. This ensures clear audio for music and calls. Whether you're driving to work or taking a trip, this system makes your BMW smarter and more connected.

Components Included in the Installation Kit

When you buy the BMW CIC CarPlay kit, it comes with all you need. The kit includes:

• LVDS video cable to link the CarPlay module.

• Wi-Fi antenna for wireless connection (attach to plastic parts).

• AV/USB cable to power the backup camera.

• Can Cable for easy plug-and-play power.

• iDrive cable with 4-pin and 10-pin connectors.

• Aftermarket microphone for cars without a built-in mic.

• MIC adapter cable to work with the original microphone.

These parts make installation simple and stress-free. With this kit, you can easily add Apple CarPlay to your BMW.

Benefits of Plug-and-Play Installation

The plug-and-play setup is one of the best features. You don’t need to code or program anything. The process is easy and won’t harm your car’s wiring. After installation, your BMW’s original features will still work.

Here are some main benefits:

• You can return the system to its original state anytime.

• Control everything using the iDrive controller or Siri voice commands.

• It works perfectly with your car’s head unit and features.

This simple setup makes the BMW CIC CarPlay system a great choice. It’s perfect for upgrading your car’s tech without any trouble.

Troubleshooting Common BMW CIC CarPlay Installation Errors

Fixing Sound Problems in BMW CIC CarPlay

Sound problems can be annoying but are usually simple to fix. First, make sure the audio cable is plugged into your car’s sound system. Next, go to the car’s menu and choose 'AUX'. Adjust the volume to check if the sound works.

If the issue continues, try plugging the AUX cable into the armrest box. This often solves the problem. Also, check if the iDrive controller is working. It helps control the CarPlay system.

Tip: If sound still doesn’t work, review the installation guide. Even a loose cable can cause big problems.

Solving Wireless Connection Issues with Apple CarPlay

Wireless CarPlay is great, but connection issues can happen. If it stops working, check the Wi-Fi antenna. Make sure it’s attached securely to the car’s plastic parts.

Sometimes, restarting the system can help. Turn off CarPlay, wait a few seconds, then turn it back on. This quick reset often fixes the connection.

Note: If your phone has old software, update it. Outdated software can cause connection problems with CarPlay.

Installing the Reverse Camera for BMW CIC CarPlay

Adding a reverse camera makes parking safer. Follow these steps to set it up:

1. Plug the reverse camera into the CVBS OUT port marked 'Reverse camera'.

2. Connect the yellow '12V reverse camera' cable to the camera’s power.

3. Go to Settings → Reverse → Reverse camera → Aftermarket on CarPlay.

This setup helps the reverse camera work with CarPlay. If the camera feed doesn’t show, check the LVDS cable. Wrong wiring can stop the image from appearing.

Pro Tip: Use the wire diagram in your kit. It helps avoid mistakes.

Tips for a Successful BMW CIC CarPlay Installation

Making Sure Cables Are Connected Correctly

Connecting cables properly is very important for installation. Start by plugging the audio cable into the AUX-IN port in the armrest box. This helps sound go to your car’s speakers. If you use an OEM microphone, connect A to C, unplug the blue connectors, and place the mic tap cable between the connector and main wiring. Then, set pin 7 to 'FF' and restart the system. For non-OEM microphones, connect A to C and B to D, set pin 7 to 'ON', and restart the system.

Here’s a simple guide to avoid mistakes:

Check all connections before turning on the system. Even small mistakes can cause sound or screen issues.

Setting Toggle Switches for Compatibility

Toggle switches on the CarPlay module are important for it to work. For cars with an OEM microphone, set pin 7 to 'FF' and restart the system. If your car doesn’t have an OEM microphone, connect A to C, B to D, and set pin 7 to 'ON'. Restart the system to save the changes.

Also, adjust the toggle switch for your screen size. Wrong settings can make the screen not work. Setting these switches correctly ensures the CarPlay system works well with your iDrive and other features.

Preventing Wi-Fi Antenna Problems

Wireless CarPlay needs a strong Wi-Fi signal to work. To avoid problems, attach the Wi-Fi antenna to a plastic part of your car. Metal parts can block the signal and cause connection issues. Keep the antenna away from other electronics to reduce interference.

If the wireless connection is weak, move the antenna and restart the system. This small change can improve the connection between your phone and CarPlay.

Tip: Always test the wireless connection after setup to make sure it works.

Setting up the BMW CIC CarPlay system can be simple. Follow the steps to fix sound, wireless, or camera issues. Check all cables, set toggle switches, and place the Wi-Fi antenna properly. These tips will help make your installation easy and stress-free.

Remember: Go slow and follow each step carefully. You can do it!

FAQ

How do I know if my BMW is compatible with the CIC CarPlay system?

Check your car’s production year and model. Most BMWs with CIC systems from 2008–2016 are compatible. Refer to the product manual for details.

What should I do if the screen doesn’t display anything after installation?

Verify the LVDS cable connection. Ensure it’s securely plugged into the correct port. Restart the system to refresh the display settings.

Tip: Double-check the toggle switch settings for screen size compatibility.

Can I use both wireless and wired CarPlay with this system?

Yes! You can switch between wireless and wired modes. Use the USB cable for wired CarPlay or connect via Wi-Fi for wireless functionality.

Note: Wireless mode works best with a properly placed Wi-Fi antenna.
