BMW CIC CarPlay Installation Using SCB-CIC Module

Enhance your BMW experience with the BMW CIC Carplay Installation module. This easy-to-install device provides you with Apple CarPlay and Android Auto capabilities. It also allows you to mirror your phone on your car screen effortlessly. No coding is required for setup. The CarPlay system integrates seamlessly with your BMW CIC system, offering fantastic features such as maps, music, and hands-free calling. Follow this guide to fully and easily utilize your CarPlay system.

Key Takeaways

• The SCB-CIC module makes adding Apple CarPlay and Android Auto simple. It works with your car's current features easily.

• This module shows clear visuals for maps, music, and calls. You can hear great sound using your car's speakers.

• Installing it is easy with plug-and-play cables. You can remove it without harming your car. Enjoy modern tech while keeping your car's original features.

Features and Benefits of the SCB-CIC Module

Works with BMW iDrive CIC systems

The SCB-CIC module fits perfectly with BMW cars using iDrive CIC. Whether you drive a BMW M1 or another model with an 8.8-inch screen, this module works well. It gives you CarPlay at the best screen quality possible. No coding or permanent changes are needed. It’s a simple plug-and-play setup, even for beginners.

Full digital display with perfect screen ratio

This module gives a clear digital display with the right screen size. It supports Apple CarPlay and Android Auto for full-screen use of your favorite apps. Here’s a quick look at its features:

Better driving with voice control, maps, music, and calls

This module improves driving with voice control, navigation, and hands-free calls. Use Siri or Google Assistant to manage the system without touching anything. Reviews say the sound plays through the car’s speakers, making calls and music clear. A USB slot in the armrest lets you connect your iPhone easily and start CarPlay fast.

Keeps original car features with new ones added

A great feature of this module is keeping all your car’s original functions. You can switch between CarPlay and the BMW system using the iDrive controller. This way, you keep your car’s features while adding modern tech.

Easy to remove without harming the car

The SCB-CIC module uses plug-and-play cables, so no permanent changes are made. If you want to remove it, your car can go back to its original state without damage. This makes it a safe and easy upgrade.

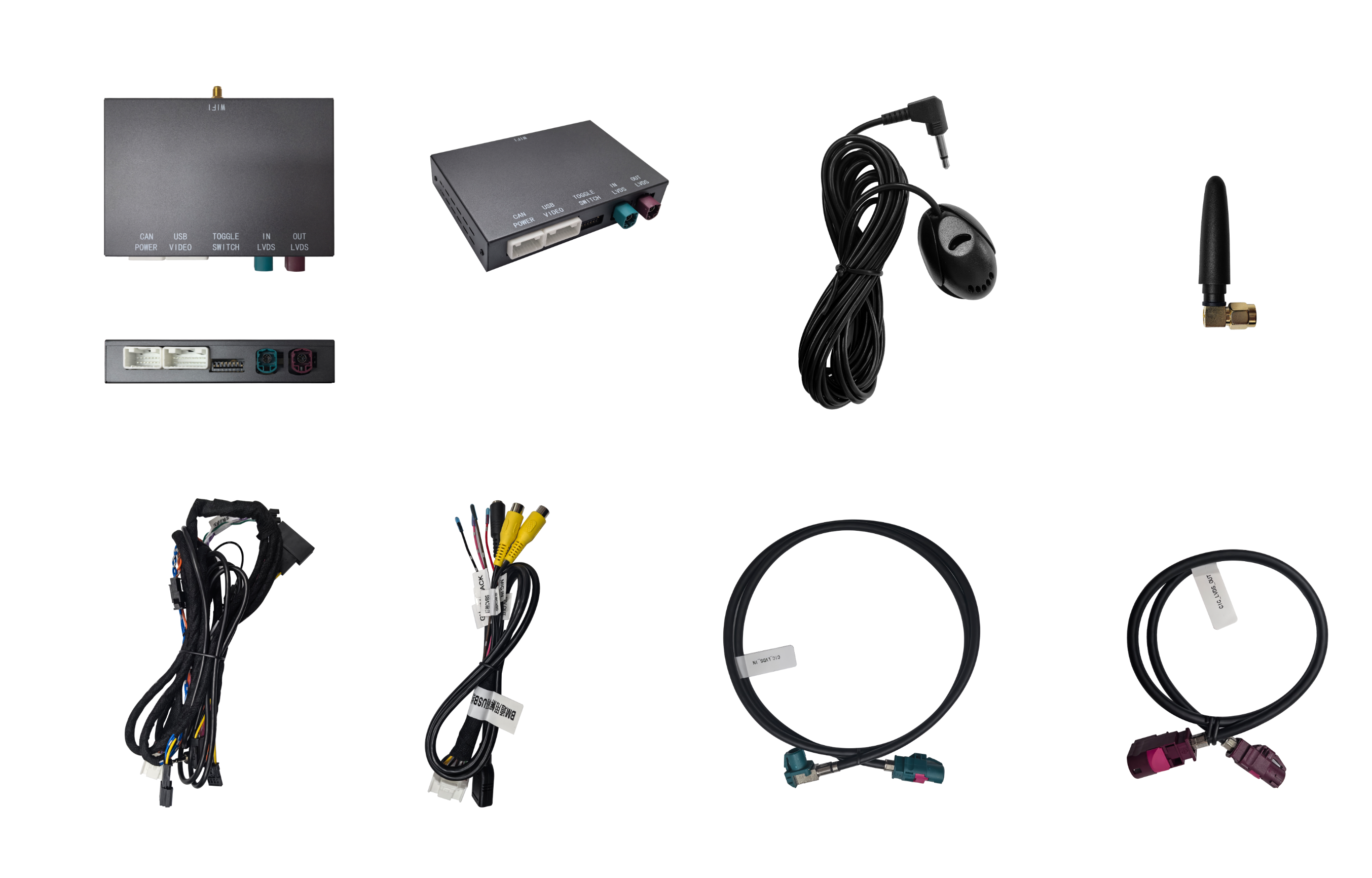

Required Accessories for BMW CIC CarPlay Installation

To set up the SCB-CIC module in your BMW, you need some key items. These tools help make the installation easy and ensure your CarPlay works well. Below is a simple list of what you’ll need:

LVDS video cable

This cable links the SCB-CIC module to your car’s screen. It has two ports: one for input and one for output. This ensures your CarPlay display looks sharp and clear.

Wi-Fi antenna

The Wi-Fi antenna lets your phone connect wirelessly to CarPlay. Attach it to a plastic part inside your car to avoid signal issues. It keeps the connection strong and steady.

AV/USB cable

This cable powers the backup camera and handles video input. It also lets you play music or videos from a USB drive.

Can Cable (power cable)

The Can Cable connects the SCB-CIC module to your car’s power. It’s easy to install and doesn’t take much time.

iDrive Cable (4-pin and 10-pin)

This cable has both 4-pin and 10-pin connectors. It works with different BMW models and links the module to your car’s iDrive system.

Aftermarket Microphone

If your car doesn’t have a built-in microphone, you’ll need this. It helps with clear voice commands and hands-free calls.

MIC adapter cable (For OEM MIC)

If your car already has a microphone, this cable connects it to the module. It keeps voice input clear and works with the system.

Tip: Check if all items match your BMW model before starting. This helps avoid problems and makes the setup smooth.

Step-by-Step Guide for BMW CIC CarPlay Installation

Moving the optical cable to the new harness

Take out the optical cable from your car’s old harness. Attach it to the new harness that comes with the SCB-CIC module. This step keeps your car’s optical system working properly. Be gentle to avoid breaking the cable.

Connecting LVDS cables correctly

Find the LVDS cables in your car. Link the input and output ports of the SCB-CIC module to the matching LVDS ports. This ensures your CarPlay display looks clear and sharp. Check the connections twice to prevent screen problems.

Adjusting the CAN connector based on car type

Check if your BMW uses a Low CAN or High CAN system. Set the CAN connector on the SCB-CIC module to match your car. This step makes sure the module works with your car’s system.

Connecting the audio cable to the AUX-IN port

Insert the audio cable into your car’s AUX-IN port. This lets sound play through your car’s speakers. Test the sound to make sure it works well with CarPlay.

Specific microphone connection steps for OEM and aftermarket MICs

If your car has an OEM microphone, connect it using the MIC adapter cable. For aftermarket microphones, plug them straight into the module. This setup helps with clear voice commands and calls.

Ensuring proper iDrive connection (4-pin or 10-pin)

Look at your car’s iDrive system to see if it uses a 4-pin or 10-pin connector. Use the right cable to connect the SCB-CIC module to the iDrive system. This lets you control CarPlay with your car’s buttons.

Setting the toggle switch based on display size and microphone type

Find the toggle switch on the SCB-CIC module. Adjust it to match your car’s screen size and microphone type. This step helps the module work perfectly with your car.

Pro Tip: Use the guide that comes with the SCB-CIC module. It has diagrams and tips to help you install everything easily.

Troubleshooting Common Issues with BMW CIC CarPlay

Fixing sound problems by checking AUX settings and cables

If sound doesn’t work, check the AUX settings first. Make sure the AUX-IN port is chosen as the audio source. Confirm the audio cable is firmly plugged into the AUX-IN port and the SCB-CIC module.

Next, check if the AUX volume is muted or too low. Turn the volume up to a normal level and test the sound. If it still doesn’t work, look for damage or loose connections in the audio cable. Replace the cable if it’s broken. These steps will help you get clear sound from your car speakers.

Solving wireless Apple CarPlay issues by checking Wi-Fi, Bluetooth, and Siri

Wireless Apple CarPlay needs a strong connection to work well. If it’s not connecting, check that Wi-Fi and Bluetooth are turned on. Make sure your phone is paired with the SCB-CIC module and the connection is active.

Also, check Siri permissions on your iPhone. Go to settings, then Siri & Search, and turn on "Allow Siri When Locked." Restart your phone and the module to fix small glitches. These steps will make your wireless Apple CarPlay work smoothly.

Setting up the reverse camera by connecting and adjusting settings

To install the reverse camera, plug it into the CVBS OUT port marked "Reverse camera." Use the yellow "12V reverse camera" cable to power it. Then, go to your car’s settings menu. Choose "Reverse," then "Reverse camera," and pick "Aftermarket" as the option.

Make sure the original CD/head unit is turned on. Check that the LVDS cable is connected to the Android screen. If needed, move the optic fiber to the Android harness. Follow these steps to make the reverse camera work perfectly with your BMW.

Tip: Check all cables and settings twice to avoid setup mistakes.

Extra Features and Uses of the SCB-CIC Module

Mirror your phone and use apps like maps and music

The SCB-CIC module makes driving more fun and easy. It lets you show your phone screen on your car’s display. Use apps like Google Maps, Spotify, and others right from your car screen. With Apple CarPlay and Android Auto, you can use maps, play music, and make calls hands-free.

• The module matches your car’s look for a smooth experience.

• Shortcut buttons can quickly open maps, music, or voice tools.

• Song or app info shows on the iDrive screen to keep you updated.

Switch between CarPlay and your car’s system easily with the iDrive controller. This keeps things simple and familiar.

Clear sound through your car’s original speakers

Hear clear sound from your car’s speakers without extra gadgets. Plug the audio cable into the AUX-IN port, and all sounds, like music and calls, will play through your BMW’s system. This gives great sound quality without needing new speakers.

Control CarPlay with iDrive buttons and switch modes easily

The SCB-CIC module works well with your car’s iDrive system. Use the iDrive buttons to control CarPlay, change settings, or skip songs. Switching between CarPlay and your car’s system is quick and simple.

• The iDrive controller makes using CarPlay easy and precise.

• Change modes with one button, so you stay focused on driving.

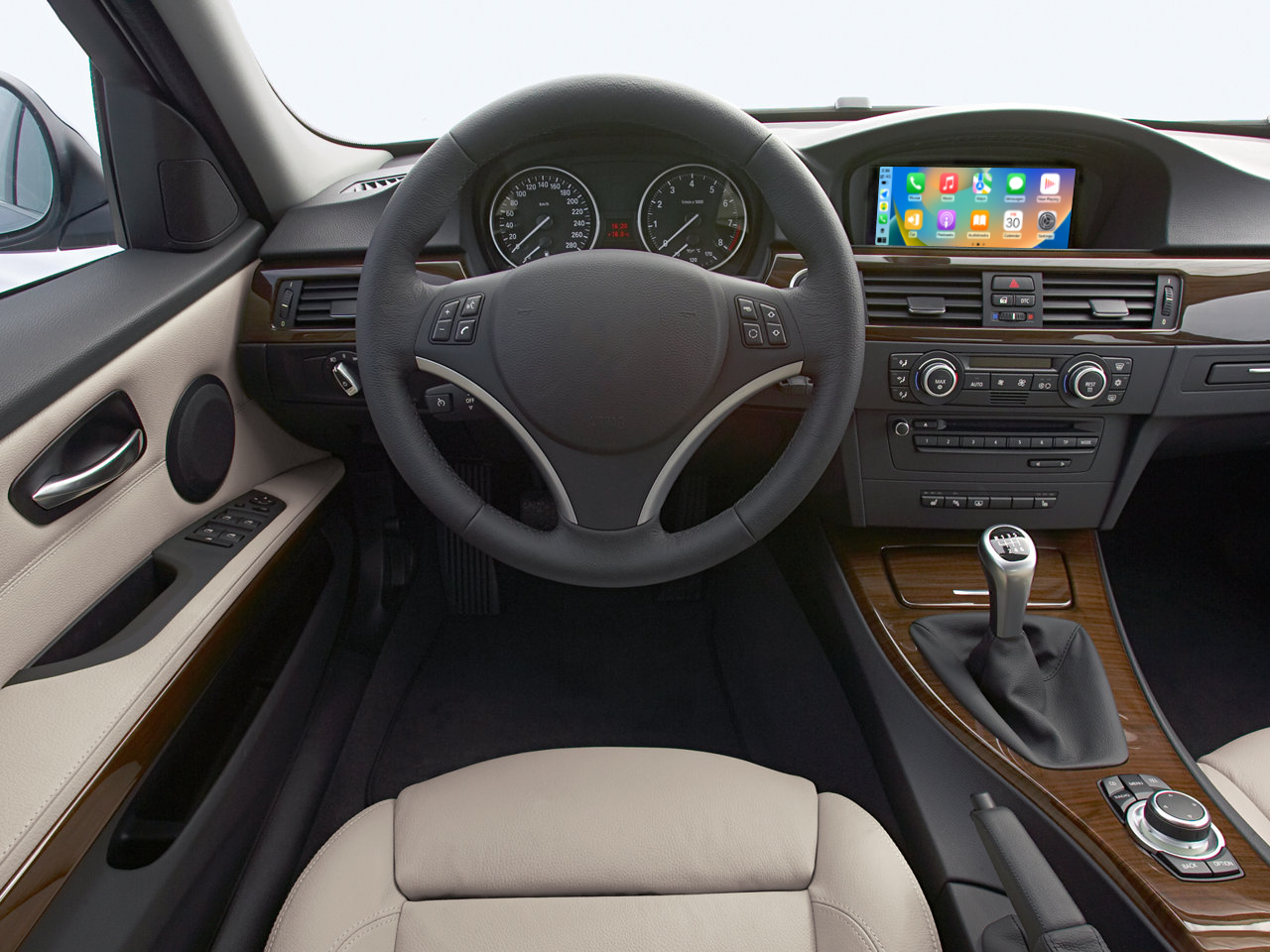

Sharp and bright display on the 8.8-inch screen

The SCB-CIC module gives a clear and colorful display on your car’s screen. It supports high resolution, making maps, apps, and videos look great. Full-screen mode makes everything easy to see and read.

This module gives the best screen quality for CarPlay and Android Auto, made just for your BMW.

The SCB-CIC module upgrades your BMW with modern features. Its easy plug-and-play setup makes installation quick and simple. With CarPlay, you get navigation, music, and hands-free calling. Upgrade now for a smarter and safer driving experience!

FAQ

1. Does the SCB-CIC module fit all BMW cars?

It works with most BMWs that have CIC systems. Check if it matches your car before buying to avoid issues.

2. Can I set up the SCB-CIC module by myself?

Yes! It’s easy to install with its plug-and-play design. Follow the guide to do it yourself without needing special skills.

3. Will the SCB-CIC module change my car’s original features?

No, it keeps all your car’s original functions. You can easily switch between CarPlay and your BMW system using the iDrive controller.
