BMW CIC CarPlay Installation Guide with Apple CarPlay Adapter for Cars
Integrating a BMW CIC Carplay Installation into your vehicle enhances your driving experience. With CarPlay, you can effortlessly access maps, music, and phone calls. The straightforward plug-and-play setup is user-friendly, making it accessible even for those new to the technology. Always verify your VIN to ensure compatibility before proceeding with the installation.
Key Takeaways
Adding the BMW CIC Apple CarPlay adapter makes driving better. It lets you use maps, play music, and make calls easily.
Get all the needed items first, like AV/USB cables and the Can cable. This helps the setup go smoothly.
Use the step-by-step guide and check everything as you go. This prevents problems like bad sound or connection issues.
Required Accessories for BMW CIC CarPlay Installation

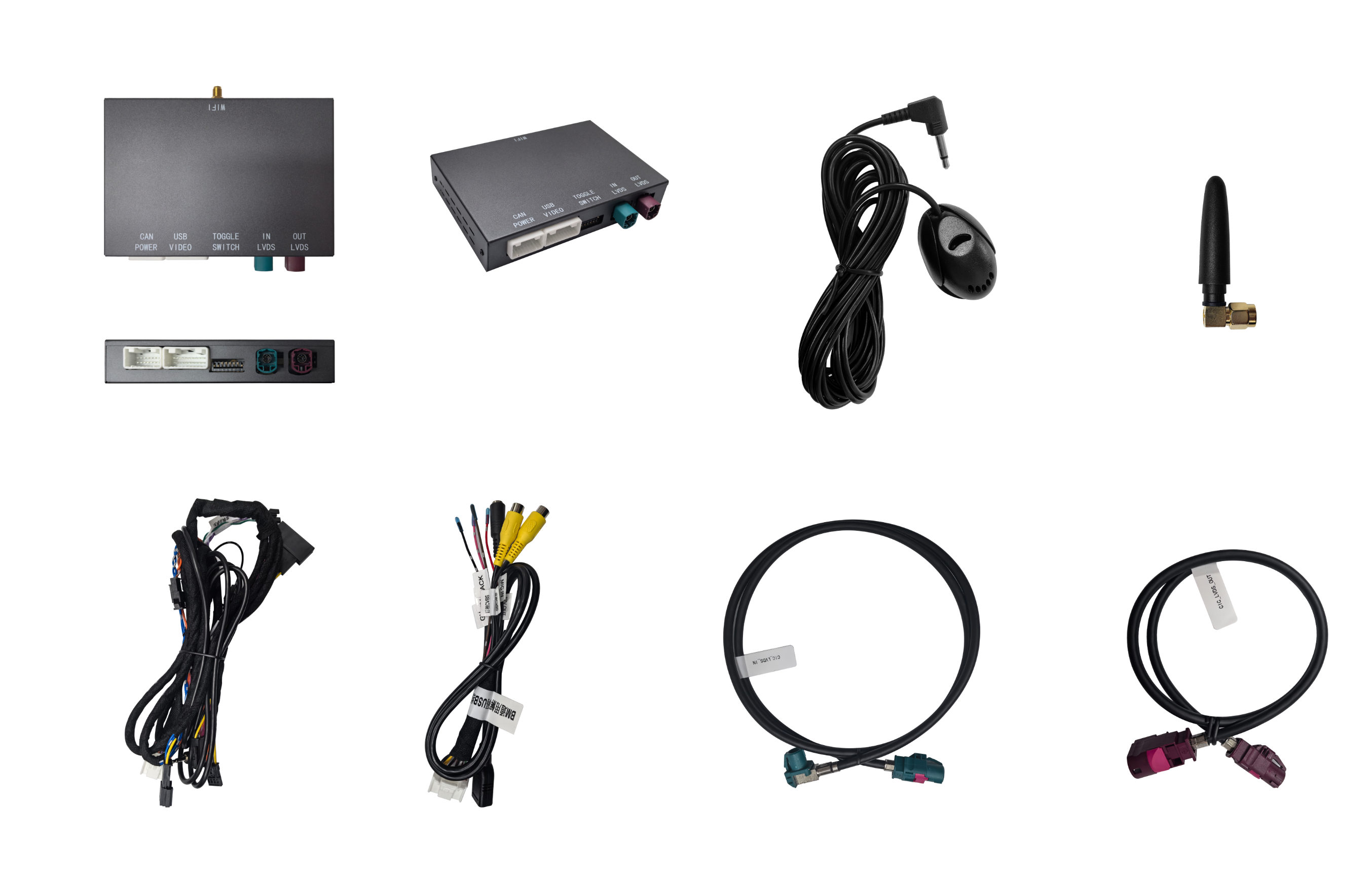

To set up the BMW CIC Apple CarPlay adapter, you need key items. Each part is important for a smooth installation. Below is a simple list of what you’ll need:
AV/USB Cable for Power and Video Input
The AV/USB cable powers the backup camera and handles video input. It links the camera to the CarPlay system for easy use. Instead of connecting the camera to the reverse lamp, use this cable for better results.
Key Features:
Powers the backup camera.
Handles video input for extra cameras.
Can Cable for Easy Power Connection
The Can cable makes installation easier with its plug-and-play design. It works with your car’s original wiring and can restore factory settings if needed.
LVDS Video Cable for Screen Connection
The LVDS video cable links the CarPlay unit to your car’s screen. It has one LVDS-IN and one LVDS-OUT port for clear video.
Cable Type | Description |
|---|---|
LVDS | Video cable for BMW CIC Apple CarPlay, 1 x LVDS-IN, 1 x LVDS-OUT |
MIC Adapter Cable for Built-In Microphone Use
If your car has a built-in microphone, the MIC adapter cable connects it to the CarPlay system. Follow these steps:
Attach the MIC adapter cable to the microphone and main harness.
Change pin "7" to "FF" and restart the system.
Aftermarket Microphone for Cars Without Built-In MIC
If your car lacks a built-in microphone, an aftermarket one is included. It supports voice commands and works well with the CarPlay system. Some users say sound quality is great, but others notice echo issues during calls.
Wi-Fi Antenna for Wireless Use
The Wi-Fi antenna allows wireless Apple CarPlay. For best results, attach it to plastic parts, not metal.
iDrive Cable with 4-Pin and 10-Pin Options
The iDrive cable fits both 4-pin and 10-pin connectors. It works with many iDrive CIC systems, so no extra changes are needed.
Tip: Check that your accessories match your BMW model to avoid problems.
Step-by-Step BMW CIC CarPlay Installation Process
Getting the Car and Tools Ready
Before starting, gather tools and prepare your car. This helps avoid mistakes or damage. Use this checklist:
Plastic tools to remove trims
Small metal picks for connectors
10mm socket and T-20 Torx Bit
Thick towel to protect dashboard and console
Electrical tape, wire cutters, and metal hanger for rear camera
OBD cable or dongle for coding the head unit
Cover the console with a thick towel to prevent scratches. If mounting the Wi-Fi antenna, avoid metal surfaces. Attach it to plastic under the iDrive screen for better signal.
Attaching the Optical Cable to the New Harness
Unplug the Quadlock cable from the head unit. Connect the new harness to this cable. Make sure the optical cable is secure in the new harness. This keeps audio and video working properly.
Setting Up the LVDS Cable for the Screen
Unplug the LVDS cable from the original screen. Plug it into the "LVDS IN" port on the adapter. Use the new LVDS cable to connect "LVDS OUT" to the screen. This ensures the display works with the new system.
Adjusting the CAN Connector for Your Car
Find the CAN connector on the harness. Adjust it to match your car type. This step ensures the CarPlay adapter works with your BMW CIC system.
Connecting the Audio Cable to AUX-IN
Plug the audio cable into the AUX-IN port of your car. This lets the CarPlay system play sound. Test the audio to make sure it works before moving on.
Installing the Microphone (OEM or Aftermarket)
If your car has an OEM microphone, connect the MIC adapter cable to it and the harness. Change pin "7" to "FF" and restart the system. If no OEM microphone, install the aftermarket one from the kit. Place it near the driver for better voice commands.
Using the Toggle Switch for Settings
Use the toggle switch to set up the display and microphone. For OEM microphones, set pin "7" to "FF." For aftermarket ones, connect A to C and B to D, then set pin "7" to ON. Restart the system to save changes.
Completing the iDrive Connection
Attach the iDrive cable to the CarPlay adapter. Match the 4-pin or 10-pin connector to your BMW CIC system. This step connects the CarPlay system to iDrive controls for easy use.
Troubleshooting Common Problems During Installation
Fixing No Sound Problems
If there’s no sound after installation, check the audio cable. Make sure the AUX-IN port is tightly connected to the adapter. Test the AUX by playing music from another device. If it still doesn’t work, select AUX mode on your car’s audio system. Also, check the optical cable in the harness. A loose optical cable can stop audio from working. Restart the system after fixing the cables to see if it works.
Solving Wireless Apple CarPlay Connection Issues
Sometimes, wireless CarPlay won’t connect. First, turn on your phone’s Bluetooth and Wi-Fi. Forget the CarPlay connection on your phone, then pair it again. Place the Wi-Fi antenna on plastic, away from metal parts. Under the iDrive screen is a good spot. If it still doesn’t work, update your phone’s iOS. Resetting the CarPlay adapter can also fix connection problems.
Setting Up the Reverse Camera the Right Way
A properly installed reverse camera gives a clear video feed. Follow these steps to set it up:
Step | What to Do |
|---|---|
1 | Add the emulator to the harness using the diagram. |
2 | Connect brown and green CAN wires to pins 11 and 9. |
3 | Attach red and black power wires to pins 15 and 12. |
4 | Link the white wire to the camera’s 12v wire. |
5 | Connect RCA + and - wires to the right harness pins. |
6 | Use NCS-EXPERT to code the car for the camera. |
7 | Test the video feed before finishing the setup. |
Testing the camera feed first helps avoid mistakes later.
Placing the Wi-Fi Antenna Correctly
The Wi-Fi antenna is important for wireless CarPlay. Put it on plastic, not metal, to avoid signal problems. Under the iDrive screen is a great place. Secure it tightly so it doesn’t move while driving. A good antenna spot keeps wireless CarPlay working smoothly.
Extra Features of the Apple CarPlay Adapter
Siri Voice Commands and Navigation Help
The Apple CarPlay adapter works well with Siri. You can use voice commands to get directions or check traffic. Ask Siri to find gas stations or the fastest route. This hands-free feature keeps your focus on driving. Turn-by-turn directions show on your iDrive screen for easy navigation.
Music Streaming and Hands-Free Calls
CarPlay improves your car’s entertainment system. You can play music, podcasts, or audiobooks through the car speakers. The hands-free call feature lets you answer or make calls safely. The adapter has great sound quality with an 8-band equalizer for better audio.
Phone Screen Sharing and App Access
The adapter lets you mirror your phone’s screen on the iDrive display. It works with both Apple and Android devices. You can use apps like Spotify, Google Maps, or WhatsApp on the car’s screen. The system is easy to use and feels like your phone.
Camera Input for Reverse and Front Views
The adapter supports both reverse and front cameras for safety. Rear camera installation is simple, with tips for different BMW models. Wagons need longer cables than sedans. The system also has AV inputs for a front camera, helping with parking.
Keeping Your Original System Features
The adapter works with your car’s iDrive system without changing it. You can switch between CarPlay and the original system anytime. This keeps all factory features while adding CarPlay benefits. The adapter is designed to fit perfectly with your car’s setup.
Adding the Apple CarPlay adapter to your BMW CIC system improves driving. It lets you use navigation, music, and hands-free calls easily. Follow the guide step by step for a simple setup. Check your car's VIN to make sure it works with your model. This upgrade is made for CIC iDrive systems in cars like the 5, 6, 7, and X3 Series. Feel free to share your questions or ideas in the comments!
