Upgrade Your BMW CIC with Wireless Apple Carplay Adapter for Car

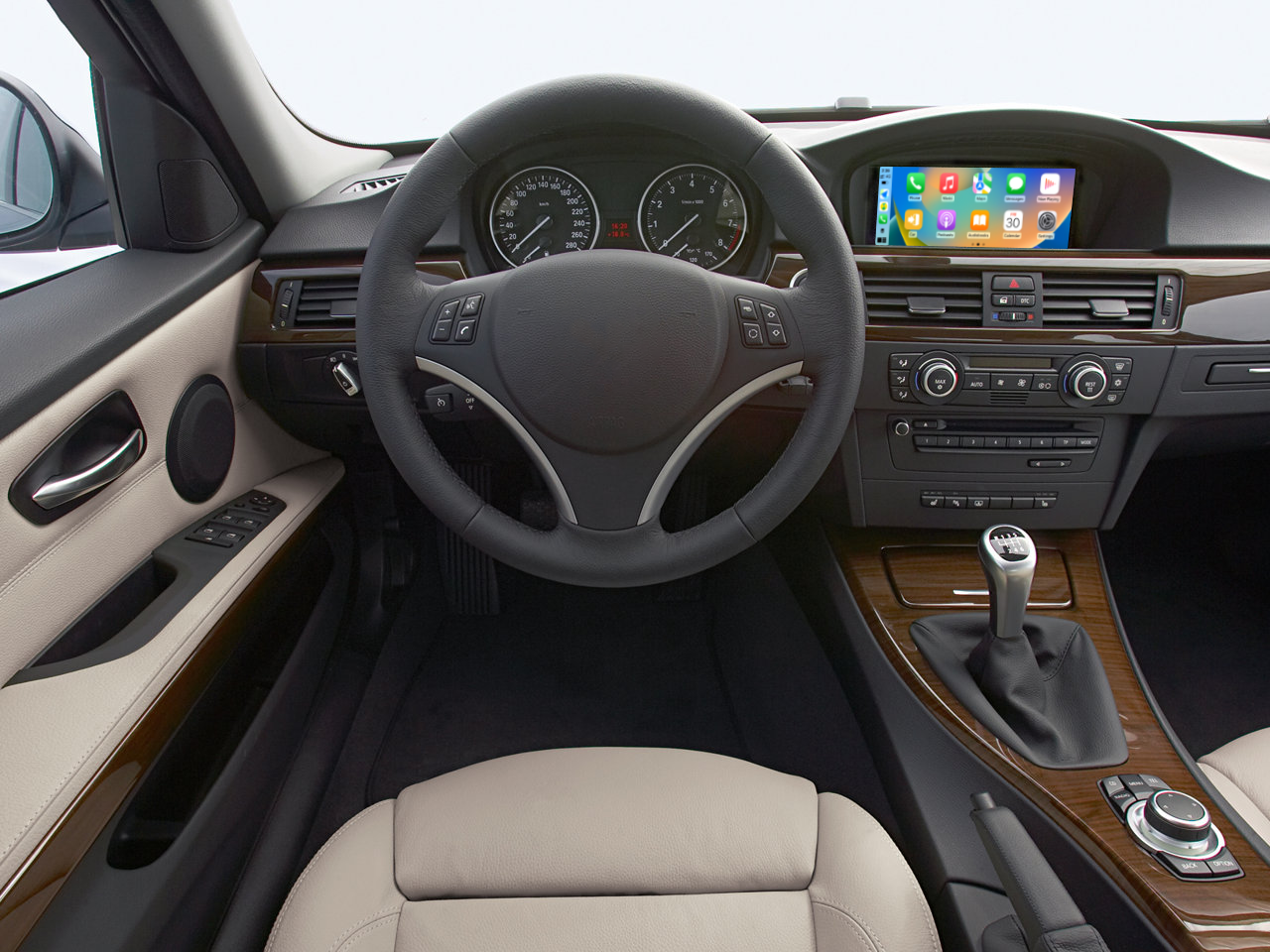

Integrating a BMW CIC Wireless Apple Carplay Installation into your vehicle enhances your driving experience. The adapter operates seamlessly with the iDrive CIC system, preserving all the original features of your car. You can effortlessly use Apple Carplay for maps, music, and calls. The wireless setup ensures a simple and hassle-free experience. Carplay mirrors your phone, allowing for quick and easy control.

Key Takeaways

• Adding a wireless Apple Carplay adapter makes driving your BMW better. It lets you use maps, play music, and make calls easily.

• Get all needed items, like the LVDS video cable and Wi-Fi antenna, ready before starting. This helps the setup go smoothly.

• Check if your BMW works with the wireless Apple Carplay adapter. Use the VIN to avoid problems during installation.

Required Accessories for BMW CIC Wireless Apple Carplay Installation

To set up BMW CIC Wireless Apple Carplay, you’ll need some key items. Each part is important for connecting the Carplay system to your car’s iDrive. Below is a list of what you’ll need:

LVDS Video Cable

The LVDS video cable links Carplay to your car’s screen. It has one LVDS-IN and one LVDS-OUT port for smooth video. Made for BMW CIC models, it supports 720p and 1080p visuals. Its easy plug-and-play design makes installation simple.

Wi-Fi Antenna

The Wi-Fi antenna gives wireless access to your Carplay system. Attach it to plastic parts in your car to avoid signal issues. It ensures a steady connection for smooth wireless use.

AV/USB Cable

This cable powers the backup camera and connects video input. To install it, connect the power to the harness, not the reverse lamp. This prevents electrical problems and keeps everything working well.

• Powers the backup camera.

• Links video input to the Carplay system.

• Avoids issues by using the harness connection.

Can Cable (Power Cable)

The Can cable powers the Carplay system. Its plug-and-play setup makes it easy to install without complicated wiring.

iDrive Cable (4-pin and 10-pin)

This cable connects Carplay to your car’s iDrive system. It has both 4-pin and 10-pin connectors for different setups.

Aftermarket Microphone

If your car doesn’t have a microphone, you can add one. This microphone improves sound for calls and voice commands, making Carplay better.

MIC Adapter Cable for OEM MIC

This cable lets you use your car’s original microphone with Carplay. It removes the need for a new microphone and keeps your car’s original features.

Tip: Check if these accessories work with your BMW model before starting. You can ask an installer or a professional for help.

Step-by-Step Installation Guide

Getting Ready for Installation

Before you start, gather all needed tools and accessories. Turn off your BMW and disconnect the battery’s negative terminal. This keeps electrical problems from happening. Collect tools like screwdrivers and trim removers. These help you reach parts without harming your car’s interior.

Take off the trim and screws around the iDrive system. This will show the connections you need. Keep the removed parts in one place for easy reassembly. Once ready, you can start connecting the LVDS cables.

Hooking Up the LVDS Cables

The LVDS cables connect Carplay to your BMW’s screen. Follow these steps:

1. Unplug the old LVDS cables from the CIC unit.

2. Attach the new interface to the CIC. Make sure LVDS-IN and LVDS-OUT ports are connected correctly.

3. Secure the cables so they don’t come loose.

4. Put the monitor and trim back after connecting.

5. Reconnect the battery and check the screen to ensure it works.

Installing the Wi-Fi Antenna

The Wi-Fi antenna makes wireless Carplay work. Place it on a plastic part inside your car to avoid signal problems. Connect it to the Carplay module and secure it well. Test the wireless setup by pairing your phone with the system.

Audio and Microphone Setup

For better sound, use a 'Y' cable to connect the OEM microphone. This improves call and voice command quality. If your car doesn’t have a microphone, add an aftermarket one. Check that all speakers and wires are connected properly to avoid issues.

Wrapping Up the Installation

When all connections are done, put the trim and screws back. Check every connection to make sure nothing is loose. Reconnect the battery and turn on your BMW. Test the Carplay system using the iDrive menu. Make sure features like Apple Carplay and wireless audio work smoothly.

Tip: Keep the manual close for help with settings or fixes.

Troubleshooting Common Issues During Installation

Fixing Sound Problems

Sound troubles can ruin your Carplay experience. First, check all audio cables. Make sure the AUX cable is firmly connected to the iDrive system. If sound is still bad, use a 'Y' cable. This connects the OEM microphone to the Carplay module. It helps make calls clearer and improves sound quality.

For bigger issues, check the amplifier for water damage. Water can often harm BMW sound systems. Use special tools to find and fix hidden problems. The table below shows helpful diagnostic methods:

Solving Wireless Connection Problems

Wireless issues can stop Carplay from working smoothly. First, update your firmware. Updates fix bugs and improve how things work. Change network settings to stop automatic hotspot connections. These can mess up the Carplay system.

Keep other devices away from the Wi-Fi antenna to avoid interference. Using good wireless adapters, like Ottocast, can also help.

Tip: Outdated firmware or interference causes most wireless issues. Update often and place the Wi-Fi antenna carefully for better performance.

Setting Up the Reverse Camera

A working reverse camera completes your Carplay setup. Start by connecting the camera’s video RCA to the R-CAM IN port. Use the green wire for power and the gray wire for grounding. The green wire should get power when in reverse gear.

If it doesn’t switch automatically, connect the white wire to the reverse light. Secure all wires and code the head unit with a diagnostic computer. Follow these steps for success:

• Link the reverse camera to the CVBS OUT marked "Reverse camera."

• Connect the "12V reverse camera (yellow)" cable to the camera power.

• Set the mode to "Reverse" and choose "Aftermarket" for the camera.

Note: Always use the BMW CIC Backup Camera Retrofit guide for correct wiring and safe connections.

Compatibility Guide for BMW CIC Wireless Apple Carplay Installation

Supported BMW Models

Before installing BMW CIC Wireless Apple Carplay, check if your car works with it. The adapter fits many BMW models, making upgrades easy for most users. Below is a table showing supported models and their production years:

If your car is listed, you can move forward with the setup.

Checking Compatibility with VIN

To confirm compatibility, use your car’s Vehicle Identification Number (VIN). This code gives details about your car’s features. Look for the VIN on the dashboard or door frame. Enter it on BMW’s website or ask an expert to check if your CIC system supports wireless Apple Carplay. This step avoids problems during installation and ensures everything works smoothly.

Tip: Always verify compatibility to save time and money.

Adjusting Settings for Different Configurations

After installing, you might need to tweak settings for better use. Here are some common adjustments:

• Video in Motion: Lets passengers watch videos while driving.

• Legal Disclaimer Deactivation: Removes the safety message at startup.

• Enhanced Bluetooth: Improves sound and call quality.

• RDC Safety: Shows tire pressure on the iDrive screen.

• Battery Registration: Registers new batteries for better performance.

These changes improve how your system works and make it more useful. The CarPlay MMI Prime retrofit is a great way to upgrade older BMW systems. It allows access to apps like iPhone and Android directly on your car’s screen.

Note: Check your manual or ask a professional for help with these settings.

Adding a wireless Apple Carplay adapter to your BMW CIC improves driving. It lets you use maps, music, and calls easily. This upgrade also makes driving safer and more fun. Start installing now to enjoy these features. Check the manual or ask support for help if needed.

FAQ

1. How can I check if my BMW supports wireless Apple Carplay?

Use your car’s VIN on BMW’s website or ask an expert. This helps confirm if the CIC system is compatible before setup.

2. Is it possible to install the wireless Apple Carplay adapter myself?

Yes, it is. Follow the simple steps shared in this blog. Use the manual for guidance or get help from a professional if unsure.

3. Will the adapter change my car’s original features?

No, it won’t. The adapter works smoothly with the iDrive system. It keeps all original features while adding wireless Apple Carplay.

Tip: Always check compatibility and follow instructions to avoid problems.
